Concrete Forming

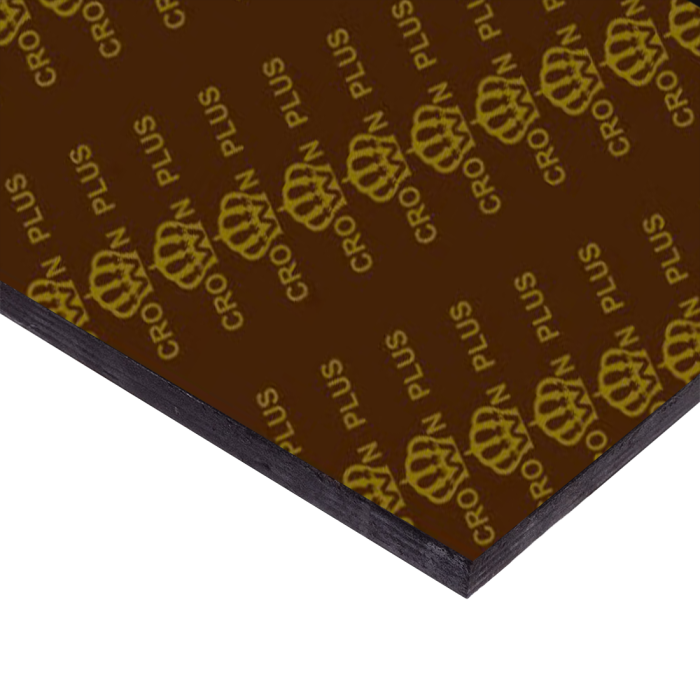

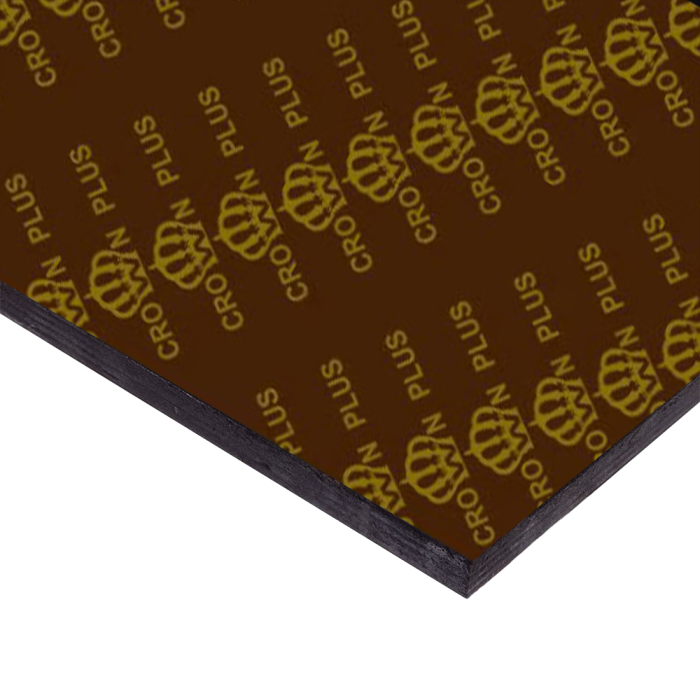

Crownplus Shuttering Plywood – Film Faced WBP
Crownplus shuttering plywood is a heavy-duty film faced panel built for concrete formwork applications. Engineered for reusability, strength, and water resistance.
Manufactured with a 100% hardwood eucalyptus core and sealed on both sides with brown phenolic film, this plywood uses WBP glue and waterproof edge sealing for added durability. It features excellent bending strength and dimensional stability, making it ideal for repetitive casting.
Specifications
- Core: 100% Hardwood Eucalyptus
- Film: Both sides coated with brown phenolic film
- Glue Type: WBP (Phenolic Resin)
- Moisture Content: 10%
- Density: 620 kg/m³
- Longitudinal Bending Strength: 55.01 MPa
- Lateral Bending Strength: 43.01 MPa
- Bonding Quality: Min 0.85 MPa
- Surface: Smooth film with sealed edges (dark brown)
Applications
- Concrete formwork & casting molds
- Wall, column, and slab form construction
- Repeated formwork systems
- Industrial and civil construction sites
Designed for demanding construction environments, Crownplus plywood delivers high strength and resistance to moisture – making it a trusted choice for shuttering works.
“Reliable in every pour – Crownplus delivers consistent formwork performance on site.”
